Cat 336 Excavator Used Caterpillar Excavator,Secondhand Cat 336 In Good Condition Excavator

Product Categories

HUNAN BEST TECHNOLOGY TRADE CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : CAT

Model Number : 336

Certification : SGS

Place of Origin : Hunan, China

MOQ : 1

Price : $42000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : negotiable

Delivery Time : 8 work days

Packaging Details : bare bones

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Year : 2022

Working hours : 6200 hours

Product name : CAT 336

Moving Type : Crawler Excavator

Engine Brand : Cat C9 Acert

Bucket capacity : 1.88 m³

rated power : 208 kW

dipper capacity : 7550 mm

Contact Now

Specification	Value
Power Source	Traditional Power
Manufacturer	Domestic
Bucket Type	Backhoe
Ton Capacity (Ton)	36
Operating Weight (kg)	37,100
Bucket Capacity (m³)	2.12 (Rock Bucket)
Arm Length (mm)	6,500
Boom Length (mm)	3,200
Performance
Swing Speed (rpm)	8.84
Swing Torque (Nm)	143,000
Travel Speed (km/h)	4.7
Bucket Digging Force (kN)	209
Arm Digging Force (kN)	166
Maximum Traction Force (kN)	302.5
Power System
Engine Model	C7.1 TTA
Rated Power (kw/rpm)	225/2000
Displacement (L)	7.01
Bore x Stroke (mm)	105x135
Emission Standard	China IV
Hydraulic System
Maximum Main Pump Flow Rate (l/min)	560
Working Hydraulic Circuit Pressure (Mpa)	35
Travel Hydraulic Circuit Pressure (Mpa)	35
Swing Hydraulic Circuit Pressure (Mpa)	29.4
Fluid Capacities
Fuel Tank (L)	600
Hydraulic Oil Tank (L)	161
Hydraulic System (L)	373
Engine Oil Change Quantity (L)	25
Coolant (L)	39
Dimensions
Transport Length (mm)	11,170
Transport Width (mm)	3,340
Transport Height (mm)	3,180
Track Total Length (mm)	5,030
Track Shoe Width (mm)	600
Track Gauge (mm)	2,740
Ground Clearance with Counterweight (mm)	1,260
Minimum Ground Clearance (mm)	510
Rear Swing Radius (mm)	3,530
Working Range
Maximum Digging Radius (mm)	11,110
Maximum Digging Depth (mm)	7,560
Maximum Digging Height (mm)	10,340
Maximum Dumping Height (mm)	7,040
Maximum Vertical Digging Depth (mm)	5,860

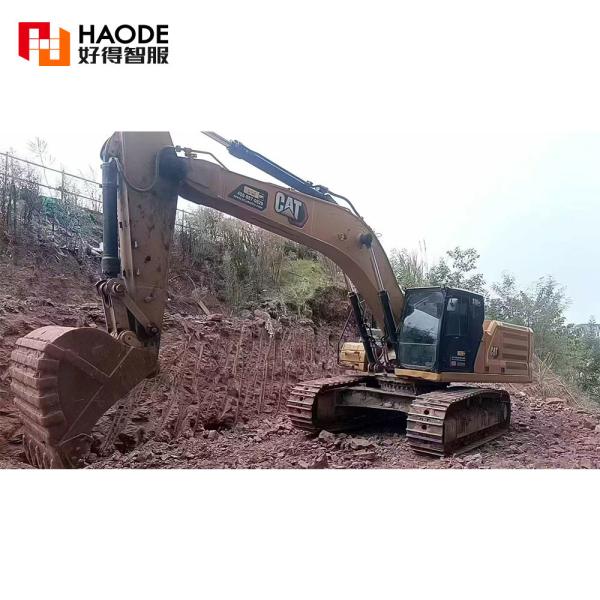

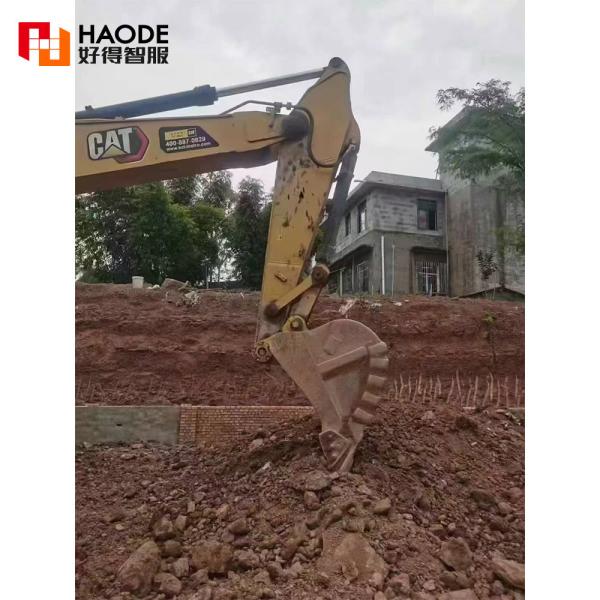

Cat 336 Excavator Used Caterpillar Excavator,Secondhand Cat 336 In Good Condition Excavator Images
